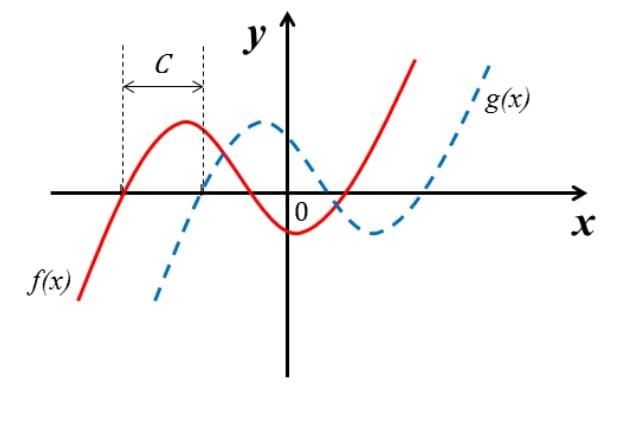

A horizontal shift, also known as a horizontal translation, moves the graph of a function left or right along the x-axis without changing its shape, size, or orientation. The transformation is achieved by adding or subtracting a constant, denoted by h, directly to the input variable x within the function's definition. This is a fundamental type of rigid transformation in algebra and calculus.
In this form, f(x) is the original function, g(x) is the transformed function, and h is the value of the horizontal shift. The direction of the shift is counter-intuitive: a positive h shifts the graph to the right, and a negative h (making the expression f(x+h)) shifts the graph to the left.
Imagine a standard parabola, f(x) = x², with its vertex at the origin (0,0). A horizontal shift transforms this graph by moving it along the x-axis. If we apply the transformation g(x) = f(x - 3), which is g(x) = (x - 3)², the entire parabola moves 3 units to the right. Its new vertex is now at (3,0). Conversely, for g(x) = f(x + 2) or g(x) = (x + 2)², the parabola slides 2 units to the left, with its new vertex at (-2,0). The shape and upward orientation of the parabola remain identical in all cases.
Shape Preservation: The fundamental shape, width, and orientation of the function's graph are not altered by a horizontal shift. It is a rigid transformation.
Domain Shift: If the domain of f(x) is [a, b], the domain of g(x) = f(x - h) becomes [a + h, b + h]. The entire set of valid inputs is shifted by h.
Range Invariance: The range (the set of all possible output values) of the function remains completely unchanged after a horizontal shift.
Key Point Translation: Any point (a, b) on the graph of f(x) moves to a new point (a + h, b) on the graph of g(x) = f(x - h). This applies to vertices, intercepts, and other characteristic points.
Vertical Asymptotes: If f(x) has a vertical asymptote at x = c, then g(x) = f(x - h) will have a vertical asymptote at x = c + h.
Y-Intercept Change: The y-intercept of f(x) is at (0, f(0)). The y-intercept of g(x) = f(x - h) is at (0, f(-h)).
We want to prove that the graph of g(x) = f(x - h) is the graph of f(x) shifted horizontally by h units.
1. Start with an arbitrary point on the original graph:
Let (x₀, y₀) be any point on the graph of y = f(x). By definition, this means that y₀ = f(x₀).
2. Define a new point on the shifted graph:
Let (x₁, y₁) be the corresponding point on the graph of y = g(x), which we claim is shifted horizontally by h. This means the new point should have the coordinates x₁ = x₀ + h and y₁ = y₀.
3. Show that this new point satisfies the shifted function's equation:
We need to verify if y₁ = g(x₁). Let's substitute our new coordinates into the equation for g(x).
Now, substitute x₁ = x₀ + h into the expression:
From step 1, we know that f(x₀) = y₀. And from step 2, we set y₁ = y₀. Therefore:
Conclusion: We have shown that the point (x₀ + h, y₀) satisfies the equation y = g(x) = f(x - h). Since (x₀, y₀) was an arbitrary point on the original graph, this holds for all points. Thus, every point on the graph of f(x) is shifted h units horizontally to produce the graph of g(x).
Physics & Engineering: Horizontal shifts are used to model time delays in wave propagation (phase shifts), signal processing, and control systems. For example, the response of a system to a stimulus might be delayed by a few milliseconds, which is represented by a horizontal shift in its function.
Economics & Finance: Economists apply horizontal shifts to model market response lags. For instance, the effect of an interest rate change on consumer spending might not be observed immediately but after a delay of several months, which is modeled as a shift along the time axis.
Music & Audio Engineering: In digital audio workstations, horizontal shifting is used for timing corrections, creating echo and delay effects, and ensuring different tracks are synchronized (beat matching).
Medicine & Biology: Medical researchers model circadian rhythm shifts due to travel (jet lag) or changes in work schedules. The timing of drug administration for maximum efficacy (chronotherapy) also relies on understanding these phase shifts in biological processes.
Broadcast Delays: A live television or radio broadcast is often delayed by a few seconds before being aired. The graph representing the audio signal at the broadcast station is horizontally shifted to the right compared to the graph of the signal at the source event.
Seasonal Business Cycles: A company that sells swimwear will have a sales peak in the summer. A similar company in the opposite hemisphere will have the exact same sales curve shape, but it will be shifted horizontally by six months along the time axis.
Traffic Flow: The pattern of traffic congestion at one point on a highway will appear later at a point several miles down the road. The graph of traffic volume versus time for the downstream location is a horizontally shifted version of the graph for the upstream location.
| Shift Direction | Condition | Transformation | Geometric Interpretation |
|---|---|---|---|
| Right Shift (Delay) | h > 0 | g(x) = f(x - h) | Graph moves h units in the positive x-direction. |
| Left Shift (Advance) | h > 0 | g(x) = f(x + h) | Graph moves h units in the negative x-direction. |
Phase Shift: In the context of periodic functions like sine and cosine, a horizontal shift is called a phase shift. It describes how much the start of a cycle is advanced or delayed relative to a standard position. For a function like y = A sin(B(x - C)) + D, the value C represents the phase shift.
Confusing the Sign: The most common error is assuming f(x + h) shifts right and f(x - h) shifts left. Remember the rule is counter-intuitive: the sign inside the parenthesis is opposite to the direction of the shift. 'Minus moves right, plus moves left'.
Incorrect Order of Operations: When combined with a horizontal stretch (e.g., f(2x - 6)), the shift is not 6 units. You must factor out the coefficient first: f(2(x - 3)). The horizontal shift is 3 units to the right, applied after a horizontal compression by a factor of 2.
Applying Shift to Y-coordinate: A horizontal shift ONLY affects the x-coordinates of points on the graph. A point (a, b) becomes (a + h, b) for a right shift by h, not (a, b + h) or (a + h, b + h).
