In three-dimensional analytical geometry, a line is a straight one-dimensional figure that has no thickness and extends endlessly in both directions. Its orientation is uniquely defined by its direction cosines or direction ratios, and its position is fixed by a point that lies on it.
Direction Cosines (l, m, n): These are the cosines of the angles (α, β, γ) that the line makes with the positive x, y, and z axes, respectively. They represent the components of a unit vector along the line's direction and provide a normalized way to describe its orientation.
Direction Ratios (a, b, c): These are any three numbers that are proportional to the direction cosines of the line. They define the direction of the line but not its magnitude.
| Symbol | Description |
|---|---|
| l, m, n | Direction cosines - cosines of angles with positive x, y, z axes respectively |
| α, β, γ | Direction angles - angles the line makes with the positive coordinate axes |
| a, b, c | Direction ratios - proportional values representing the line's direction |
| (x₁, y₁, z₁) | Coordinates of a known point on the line |

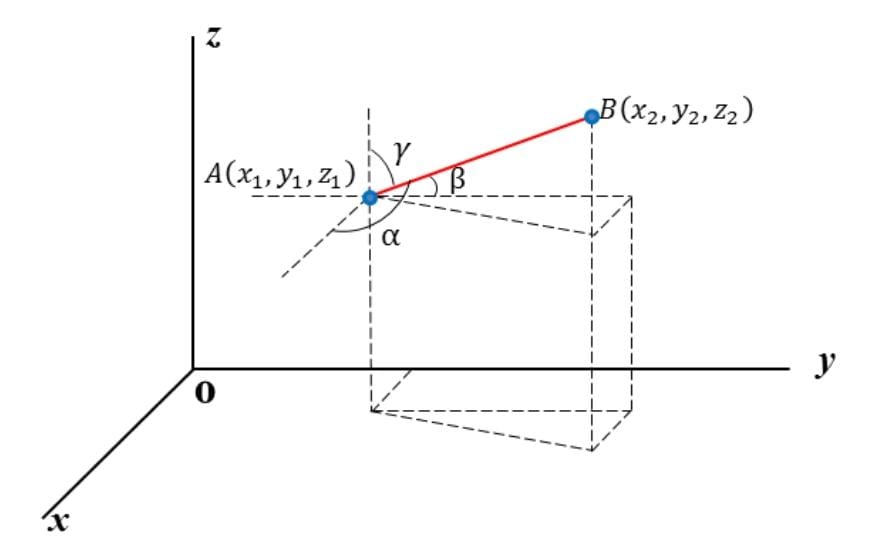

A diagram would show a 3D Cartesian coordinate system with x, y, and z axes meeting at the origin O. A straight line L passes through a point P₁(x₁, y₁, z₁). The line forms angles α, β, and γ with the positive x, y, and z axes, respectively. A direction vector, d, with components corresponding to the direction cosines (l, m, n), is shown parallel to the line L.
Lines in three-dimensional space have several key properties defined by their direction vectors.
| Relationship | Condition using Direction Cosines |
|---|---|
| Parallel Lines | Their direction cosines are identical or have opposite signs: l₁ = ±l₂, m₁ = ±m₂, n₁ = ±n₂. Equivalently, their direction ratios are proportional: a₁/a₂ = b₁/b₂ = c₁/c₂. |
| Perpendicular Lines | The dot product of their direction vectors is zero: l₁l₂ + m₁m₂ + n₁n₂ = 0. |
We can prove the fundamental relationship of direction cosines, l² + m² + n² = 1, using basic vector principles.
Consider a vector OP from the origin O(0,0,0) to a point P(x,y,z). Let the magnitude of this vector be r. This vector makes angles α, β, and γ with the positive x, y, and z axes, respectively.
The projections of the vector OP onto the coordinate axes are given by:
By definition, the direction cosines are l = cos α, m = cos β, and n = cos γ. Substituting these into the projection equations gives:
Now, substitute these expressions for x, y, and z back into the magnitude-squared formula:
Assuming r is not zero (the line does not pass only through the origin), we can divide both sides by r² to arrive at the final result:
Aircraft navigation systems use direction cosines and vector equations of lines to calculate precise flight paths, headings, and spatial orientation relative to Earth's coordinate system. This is crucial for autopilot systems and air traffic control.
Engineers model structural elements like beams, columns, and cables as lines in 3D space. They use direction cosines to analyze member orientations, calculate load distributions, and ensure precise alignment during construction, especially in complex structures like bridges and skyscrapers.
In 3D rendering, lines are fundamental. Graphics engines use their equations for camera positioning, calculating the trajectory of objects, determining lines of sight, ray tracing for lighting and reflections, and detecting collisions between objects.
GPS satellites and tracking systems rely on the geometry of lines to calculate precise positions. The line of sight from multiple satellites to a receiver on Earth is used in trilateration to pinpoint a location. Orbital mechanics also heavily involves modeling trajectories as paths in 3D space.
Robotics and Automation: A robotic arm in a manufacturing plant must move in a straight line from one point to another to pick up a component. The line's equation and direction cosines define this path, ensuring the arm moves precisely without colliding with other machinery.
Architecture and Construction: When designing a skyscraper, structural engineers model steel beams and columns as lines in a 3D coordinate system. They use the angles between these lines to calculate stress and ensure the building's stability, especially for diagonal supports.
Astronomy: Astronomers use lines to model the trajectory of light from a distant star to a telescope on Earth. The direction cosines of this line help in aiming the telescope accurately and tracking the object as the Earth rotates.
| Line Relationship | Geometric Description | Mathematical Condition |
|---|---|---|
| Intersecting Lines | The lines cross at a single common point. They are coplanar. | A unique solution exists for (x, y, z). The shortest distance is 0. |
| Parallel Lines | The lines never cross and maintain a constant distance. They are coplanar. | Their direction vectors are scalar multiples: \( \vec{d_1} = k \vec{d_2} \) or \( \frac{l_1}{l_2} = \frac{m_1}{m_2} = \frac{n_1}{n_2} \). |
| Skew Lines | The lines are not parallel and do not intersect. This is only possible in 3D space. | The lines are not coplanar. The shortest distance is non-zero and calculated using the scalar triple product. |
| Coincident Lines | The lines are identical, sharing all points. | They are parallel and share at least one common point. |
Confusing Direction Ratios with Direction Cosines: Students often use direction ratios (a, b, c) directly in formulas that require normalized direction cosines (l, m, n), such as the angle formula. Always remember to normalize the direction ratios by dividing by \(\sqrt{a^2 + b^2 + c^2}\) first.
Forgetting the l² + m² + n² = 1 Check: The sum of the squares of the direction cosines must equal 1. This is a crucial check. If your calculated values don't satisfy this equation, there's a mistake in your normalization.
Assuming Lines in 3D Must Intersect or Be Parallel: In 2D, lines that are not parallel must intersect. In 3D, there is a third possibility: skew lines. These lines are not parallel and never touch. Always check for this case when finding the distance between two lines.
