In analytical or coordinate geometry, a triangle is a polygon with three vertices, A, B, and C, defined by their coordinates (x, y) on a Cartesian plane. This approach transforms geometric problems involving side lengths, angles, areas, and special points into algebraic calculations. Every property of the triangle can be determined precisely using formulas derived from the coordinates of its vertices.
| Symbol | Description |
|---|---|
| A(x₁, y₁), B(x₂, y₂), C(x₃, y₃) | The three vertices (corners) of the triangle, each defined by its coordinates. |
| a, b, c | The lengths of the sides opposite to vertices A, B, and C, respectively. |
| G | The Centroid, or center of mass, which is the intersection point of the medians. |
| O | The Circumcenter, the center of the circle that passes through all three vertices. |
| I | The Incenter, the center of the circle inscribed within the triangle, tangent to all three sides. |
| H | The Orthocenter, the intersection point of the altitudes of the triangle. |
| s | The semi-perimeter, calculated as half the sum of the side lengths: (a + b + c) / 2. |
| R | The Circumradius, the radius of the circumscribed circle. |
| r | The Inradius, the radius of the inscribed circle. |

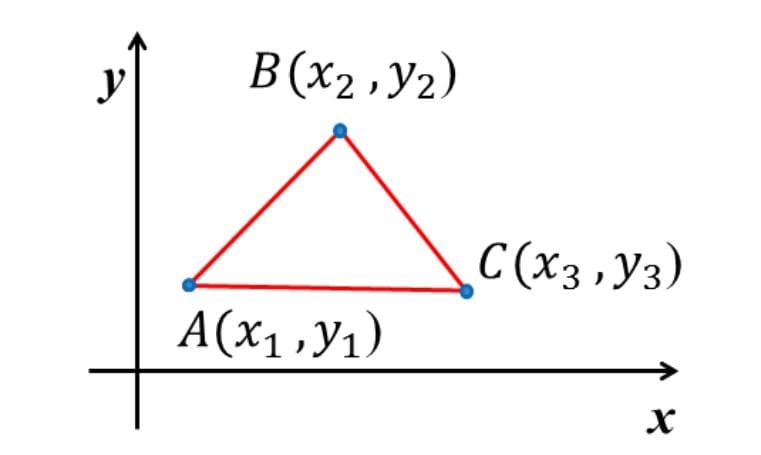

A triangle labeled ABC is placed on a 2D Cartesian plane. Vertex A is at coordinates (x₁, y₁), vertex B is at (x₂, y₂), and vertex C is at (x₃, y₃). The sides opposite these vertices are labeled a, b, and c respectively. Important points such as the centroid (G), incenter (I), circumcenter (O), and orthocenter (H) can also be located within or outside the triangle using their coordinate formulas.
Using coordinate geometry reveals several key properties of triangles and their special points:
The area formula for a triangle with vertices A(x₁, y₁), B(x₂, y₂), and C(x₃, y₃) can be derived by projecting the vertices onto the x-axis and calculating the areas of the resulting trapezoids.
Step 1: Assume the x-coordinates are ordered x₁ < x₂ < x₃. Let the projections of A, B, and C on the x-axis be P, Q, and R, respectively. This forms three trapezoids: APQB, BQRC, and APRC.
Step 2: The area of the triangle ABC is the sum of the areas of trapezoids APQB and BQRC, minus the area of trapezoid APRC.
Step 3: The area of a trapezoid with parallel sides h₁ and h₂ and width w is ½(h₁ + h₂)w. Applying this to our trapezoids:
Step 4: Expand and simplify the expression.
Step 5: Rearranging the terms and taking the absolute value to ensure a positive area gives the standard Shoelace Formula.
🏗️ Architecture & Engineering: Architects and engineers use triangular coordinates to design trusses, calculate load distributions, and ensure structural stability in buildings and bridges.
🛰️ GPS & Navigation: GPS systems use triangulation with satellite coordinates to determine precise locations, calculate distances, and provide accurate navigation information.
🎮 Computer Graphics: Game developers and animators use triangular meshes with coordinate vertices to create 3D models, calculate lighting, and render realistic graphics.
🏞️ Surveying & Mapping: Surveyors use coordinate triangulation to measure land areas, create accurate maps, and establish property boundaries with precise coordinates.
Structural Design: The trusses supporting a bridge or roof are analyzed as a network of interconnected triangles. Engineers model the vertices of these triangles in a coordinate system to calculate the forces of tension and compression on each beam, ensuring the entire structure can safely support its intended load.
Cell Phone Triangulation: Emergency services can locate a mobile phone by measuring the signal strength from three different cell towers. By treating the towers as vertices of a triangle with known coordinates, the phone's position can be calculated as a point within that triangle, a process critical for 911 calls.
3D Modeling for Movies: The surface of any 3D animated character or object is constructed from a mesh of thousands of tiny triangles. The coordinates of each triangle's vertices define the object's shape. Animators manipulate these coordinates to create movement, and the graphics engine uses them to calculate how light should reflect off the surface, creating a realistic image.
Triangles can be classified based on their side lengths or angles, which can be determined from the vertex coordinates.
| Triangle Type | Coordinate Geometry Condition |
|---|---|
| Equilateral | All three side lengths are equal: |AB| = |BC| = |CA|. |
| Isosceles | Exactly two side lengths are equal, e.g., |AB| = |AC| ≠ |BC|. |
| Scalene | All three side lengths are different. |
| Right-Angled | The square of the longest side equals the sum of the squares of the other two (Pythagorean theorem), e.g., |AB|² + |BC|² = |AC|². Alternatively, the dot product of the vectors of two sides is zero, e.g., (x₂-x₁)(x₃-x₁) + (y₂-y₁)(y₃-y₁) = 0, indicating perpendicularity. |
| Obtuse | The square of the longest side is greater than the sum of the squares of the other two, e.g., |AB|² + |BC|² < |AC|². |
| Acute | The square of the longest side is less than the sum of the squares of the other two, e.g., |AB|² + |BC|² > |AC|². |
Forgetting the absolute value for the area formula. Area must always be a positive quantity. The raw result of the determinant calculation can be negative, which simply indicates the orientation of the vertices (e.g., clockwise instead of counter-clockwise).
Mixing up the order of coordinates (x₁, y₁, x₂, y₂, etc.) in the formulas for area, slope, or distance. Always label your points clearly as (x₁, y₁), (x₂, y₂), and (x₃, y₃) and substitute them carefully and consistently.
Incorrectly calculating the slope of a perpendicular line. To find the slope of an altitude, you need the negative reciprocal of the base's slope (m₂ = -1/m₁). A common error is to only take the reciprocal (1/m₁) or only the negative (-m₁).
