An ellipsoid is a three-dimensional surface that is the analog of a two-dimensional ellipse. It is a quadric surface, meaning its equation is a polynomial of degree two. Geometrically, it can be visualized as a sphere that has been stretched or compressed along its three perpendicular axes by different amounts. The standard equation of an ellipsoid is centered at a point M(h, k, l) and has semi-axes of lengths a, b, and c, which are the distances from the center to the surface along the x, y, and z axes, respectively.
| Symbol | Description |
|---|---|
| (h, k, l) | The coordinates of the center of the ellipsoid. |
| a | The length of the semi-axis along the x-direction. |
| b | The length of the semi-axis along the y-direction. |
| c | The length of the semi-axis along the z-direction. |
| V | The volume enclosed by the ellipsoid's surface. |
| S | The surface area of the ellipsoid. |

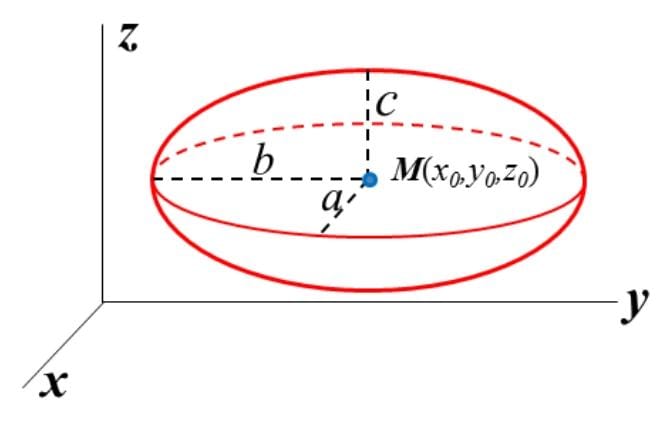

A 3D ellipsoid is centered at a point M with coordinates (h, k, l). Three mutually perpendicular semi-axes extend from the center: 'a' along the x-direction, 'b' along the y-direction, and 'c' along the z-direction. These lengths define the overall shape and size of the ellipsoid, determining how stretched or flattened it is along each axis.
Quadric Surface: An ellipsoid is defined by a second-degree polynomial equation. Its surface is smooth and continuous everywhere, with no sharp edges or vertices.
Symmetry: It possesses three mutually perpendicular axes of symmetry and three corresponding planes of symmetry. Any reflection across these planes leaves the ellipsoid unchanged.
Elliptical Cross-Sections: Any plane that intersects the ellipsoid creates a cross-section that is an ellipse. If the plane is perpendicular to one of the principal axes and the other two semi-axes are equal, the cross-section is a circle.
Convexity: The surface of an ellipsoid is convex, meaning that a line segment connecting any two points on the surface lies entirely inside or on the ellipsoid.
The equation of an ellipsoid can be derived by applying scaling transformations to the equation of a unit sphere.
Step 1: Start with a unit sphere. A sphere centered at the origin with a radius of 1 has the equation:
Step 2: Apply scaling transformations. To transform this sphere into an ellipsoid with semi-axes a, b, and c, we stretch or compress it along each axis. Let the new coordinates be (x, y, z) such that:
Step 3: Substitute the transformations into the sphere equation. We solve for X, Y, and Z in terms of x, y, and z and substitute them back into the sphere's equation:
This gives the standard equation for an ellipsoid centered at the origin. To move the center to (h, k, l), we simply replace x, y, and z with (x-h), (y-k), and (z-l).
Geodesy and Earth Sciences: The Earth is not a perfect sphere but an oblate ellipsoid, slightly flattened at the poles. The ellipsoidal model is crucial for accurate GPS calculations, map projections (like WGS 84), and understanding Earth's gravitational field.
Physics and Chemistry: In physics, ellipsoids model the distribution of stress or strain within materials (stress tensor). In chemistry, the probability clouds of electron orbitals in atoms can have ellipsoidal shapes, and molecular geometries are often described using ellipsoidal models.
Medical Imaging: Organs like the heart, kidneys, bladder, and tumors are often approximated as ellipsoids in medical scans (MRI, CT). This allows for accurate volume estimation, which is vital for diagnosis, surgical planning, and monitoring treatment effectiveness.
Statistics: In multivariate statistics, ellipsoids are used to represent confidence regions for a set of parameters. These 'confidence ellipsoids' provide a visual and mathematical way to understand the uncertainty and correlation between multiple variables.
Architectural Domes: Many modern sports stadiums and historical buildings feature semi-ellipsoidal domes. This shape provides excellent structural integrity over large open spaces and is acoustically beneficial for concert halls, as it can focus sound waves.
Astronomy: The shape of galaxies can be modeled as triaxial ellipsoids, which helps astronomers classify them and understand their rotational dynamics and mass distribution. Similarly, the Roche limit, the distance within which a celestial body will disintegrate due to a second body's tidal forces, often forms an ellipsoidal shape.
Food and Nature: Many objects in nature adopt an ellipsoidal shape for efficiency. Eggs, lemons, plums, and watermelons are common examples. This shape provides a good balance between volume and structural strength from external pressures.
Ellipsoids are classified based on the relative lengths of their three semi-axes (a, b, c).
| Type | Semi-Axes Relationship | Description |
|---|---|---|
| Sphere | \( a = b = c \) | A perfectly round ellipsoid where all semi-axes are equal. |
| Oblate Spheroid | \( a = b > c \) | A flattened ellipsoid, like a pancake or the planet Earth. |
| Prolate Spheroid | \( a > b = c \) | An elongated ellipsoid, like a rugby ball or a football. |
| Scalene Ellipsoid | \( a \neq b \neq c \) | The most general case where all three semi-axes have different lengths. |
Confusing Axes with Semi-Axes: The formula uses semi-axes (a, b, c), which are distances from the center to the surface (like a radius). A common mistake is using the full axes or diameters (2a, 2b, 2c). Always divide the total length, width, and height by two.
Incorrect Signs for Center Coordinates: For a center at (h, k, l), the formula is \((x-h)^2, (y-k)^2, (z-l)^2\). If a coordinate is negative, like k = -5, the term becomes \((y - (-5))^2 = (y+5)^2\). A sign error will place the center in the wrong octant.
Forgetting to Square the Semi-Axes: The denominators in the standard equation are \(a^2, b^2, c^2\), not a, b, and c. When writing the equation from given semi-axes, remember to square them. When finding the semi-axes from the equation, remember to take the square root.
The director sphere (also called the orthoptic sphere) of the ellipsoid x²/a² + y²/b² + z²/c² = 1 is the sphere x² + y² + z² = a² + b² + c². Any point that lies on this sphere has the special property that the three tangent planes drawn from it to the ellipsoid are mutually perpendicular — each pair of planes meets at a right angle. This is the 3D analogue of the director circle of an ellipse, from which the two tangent lines are always perpendicular. The result means the sum of squares of the semi-axes (a² + b² + c²) completely determines the radius of this sphere, regardless of the orientation of the tangent planes chosen.
