A hyperbola is a type of smooth curve lying in a plane, defined by its geometric properties or by equations for which it is the solution set. A hyperbola has two pieces, called connected components or branches, that are mirror images of each other and resemble two infinite bows. It is defined as the set of all points in a plane where the absolute difference of the distances from two fixed points, called the foci, is constant.
Where P is any point on the hyperbola, F₁ and F₂ are the two foci, and 2a is the constant difference, equal to the distance between the vertices.

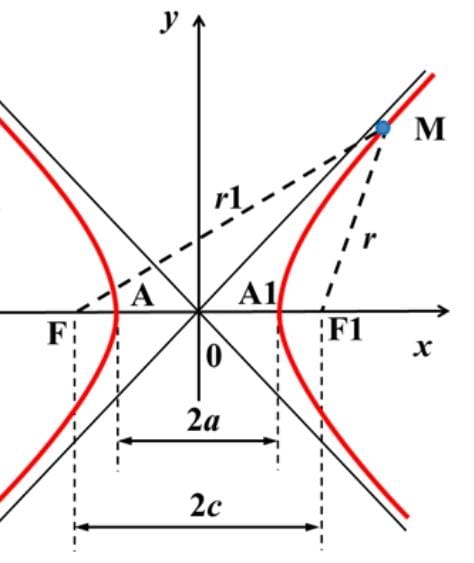

| Symbol | Description |
|---|---|
| a | Semi-transverse axis: Half the distance between vertices along the main axis. |
| b | Semi-conjugate axis: Determines the slope of the asymptotes and the width of the hyperbola. |
| c | Focal distance: Distance from the center to each focus, where c² = a² + b². |
| (h, k) | Center coordinates: The midpoint between the two branches and the intersection of the asymptotes. |
| e | Eccentricity: The ratio c/a, which measures how open the hyperbola is. For any hyperbola, e > 1. |
| F, F₁ | Foci: Two fixed points that define the hyperbola through the constant distance difference property. |
| A, A₁ | Vertices: The points on each branch closest to the center. |
A standard horizontal hyperbola is centered at the origin (0,0). It consists of two branches opening to the left and right. The vertices are located at (±a, 0) on the x-axis. The foci are further out on the x-axis at (±c, 0). The transverse axis is the segment connecting the vertices, with length 2a. The conjugate axis is a vertical segment of length 2b centered at the origin. Two asymptotes, with equations y = ±(b/a)x, pass through the origin and form an 'X' that the branches approach but never touch. A rectangle of width 2a and height 2b, centered at the origin, can be drawn to help sketch the asymptotes, which pass through its corners.
| Property | Description |
|---|---|
| Branches | A hyperbola consists of two separate, disconnected curves called branches, which are mirror images of each other. |
| Symmetry | It is symmetric with respect to both its transverse and conjugate axes, and also has point symmetry about its center. |
| Foci | The two foci lie on the transverse axis. The absolute difference of the distances from any point on the hyperbola to the foci is constant (2a). |
| Asymptotes | Each branch approaches two straight lines, the asymptotes, as it extends to infinity. The asymptotes intersect at the center of the hyperbola. |
| Eccentricity | The eccentricity (e) is always greater than 1 (e > 1). It measures the 'openness' of the branches; a larger e corresponds to a flatter, more open hyperbola. |
| Transverse Axis | The line segment connecting the vertices. Its length is 2a. |
| Conjugate Axis | The line segment perpendicular to the transverse axis at the center. Its length is 2b. |
We derive the standard equation of a hyperbola from its definition. Let the foci be at F₁(-c, 0) and F₂(c, 0), and let P(x, y) be any point on the hyperbola. By definition, the absolute difference of the distances from P to the foci is a constant, 2a.
Using the distance formula:
Isolate one radical and square both sides:
Expand and simplify:
Square both sides again:
Rearrange the terms:
For a hyperbola, c > a, so c² - a² is positive. Let b² = c² - a².
Finally, divide by a²b² to get the standard form:
Navigation & GPS: Hyperbolic navigation systems (like LORAN) use the time difference between signals received from two synchronized transmitters to determine a ship's position. The set of all possible locations for a given time difference forms a hyperbola, and using a third transmitter provides a second hyperbola, whose intersection pinpoints the location.
Astronomy & Physics: The trajectory of a celestial body (like a comet or spacecraft) that has enough velocity to escape the gravitational pull of a larger body (like the Sun) follows a hyperbolic path. In physics, the scattering of particles, such as an alpha particle by a nucleus, is described by a hyperbolic trajectory.
Architecture & Engineering: The shape of cooling towers at power plants is a hyperboloid of revolution (a hyperbola rotated around its axis). This shape provides superior structural strength and stability while promoting efficient cooling through natural air convection.
Optics and Acoustics: A hyperbolic mirror has the property that light rays directed toward one focus are reflected as if they originated from the other focus. This is used in the design of some telescopes. Similarly, sound waves can be focused using hyperbolic reflectors.
Sonic Booms: When an airplane breaks the sound barrier, it creates a conical shockwave. The intersection of this cone with the flat ground forms a hyperbola. Anyone standing on this hyperbolic curve on the ground will hear the sonic boom at the exact same moment.
Gear Transmissions: Some gear systems use hyperboloid gears. These are gears shaped like a hyperbola rotated around an axis. They are useful for transmitting motion between two non-parallel, non-intersecting shafts, allowing for smooth and efficient power transfer at an angle.
Dulles Airport: The iconic roof of the main terminal at Dulles International Airport is a stunning architectural example of a hyperbolic paraboloid. This shape provides a vast, open interior space with a gracefully curved ceiling, demonstrating both the aesthetic and structural advantages of hyperbolic geometry.
Hyperbolas are classified based on the orientation of their transverse axis. A related hyperbola, the conjugate hyperbola, shares the same asymptotes but opens in the perpendicular direction.
| Type | Standard Equation (Center at Origin) | Opens | Vertices |
|---|---|---|---|
| Horizontal Hyperbola | `x²/a² - y²/b² = 1` | Left and Right | (±a, 0) |
| Vertical Hyperbola | `y²/a² - x²/b² = 1` | Up and Down | (0, ±a) |
| Conjugate Hyperbola (to horizontal) | `y²/b² - x²/a² = 1` | Up and Down | (0, ±b) |
A special case is the Rectangular Hyperbola, where the asymptotes are perpendicular. This occurs when a = b, and its equation is `x² - y² = a²`. The graph of `y = 1/x` is also a rectangular hyperbola rotated by 45 degrees.
Confusing the Focal Relationship: Students often mix up the formula for hyperbolas (`c² = a² + b²`) with the one for ellipses (`c² = a² - b²`). Remember, for a hyperbola, c is the largest distance from the center, acting like the hypotenuse.
Identifying the Transverse Axis: The transverse axis is always associated with the positive term in the standard equation, not necessarily the term with the larger denominator. If the x² term is positive, the axis is horizontal; if the y² term is positive, it's vertical.
Incorrect Asymptote Slopes: The slope of the asymptotes is ±(rise/run). For a horizontal hyperbola, the 'rise' is b and the 'run' is a, so the slope is `±b/a`. For a vertical hyperbola, the 'rise' is a and the 'run' is b, making the slope `±a/b`.
